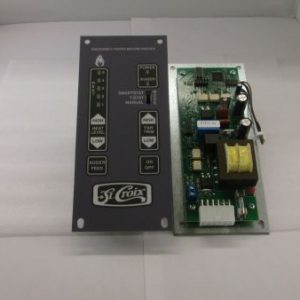

Digital Control Board
80P30523B-R
-

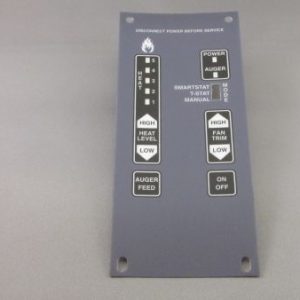

Control Board Overlay for 80P30523-R
80P30523-OL-R
-

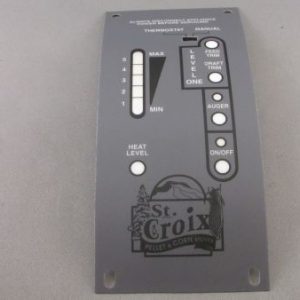

Control Board Overlay for 80P52632B-R
80P52632-OL-R
-
Convection Fan
80P20003-R
-

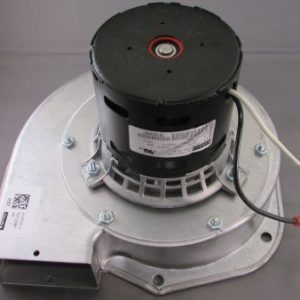

Combustion Fan (must order gasket)
80P30521-R
-
Combustion Fan, all 2015 EPA models (includes gasket)
80P31093
-
Manual Reset High Limit Thermodisc
80P52629-R
-
Auger Motor
80P20278-R
-

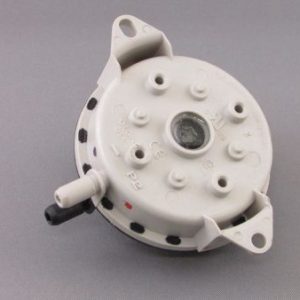

Vacuum Switch
80P30658-R
-
Hopper Lid Switch / Micro Switch
80P30268-R
-
Hopper Lid Switch – Button Type
80P31003-R
-

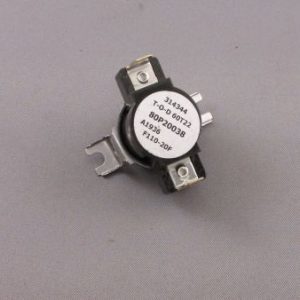

Proof of Fire Switch
80P20038-R
-
Glass Fuse for Digital Board (5 Amp) (5 pack)
80P20057-R
-

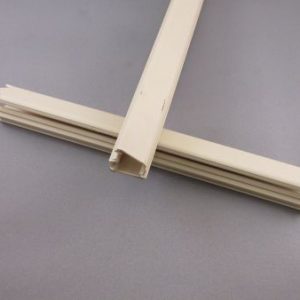

Wiring Duct
80P20403-R
-
Wiring Harness
80P52693B-R
-
Speaker Terminal–Thermostat
80P30045-R
-

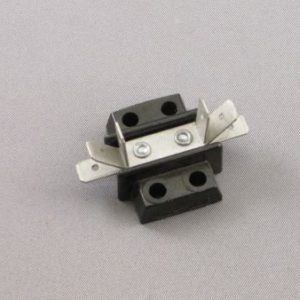

Terminal Block
80P52630-R
-

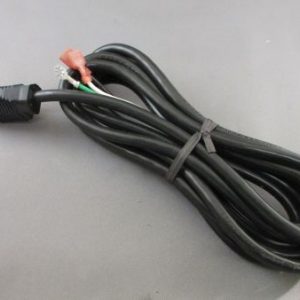

Power Cord
80P20004-R
-
Auger Gasket
80P20245-R
-

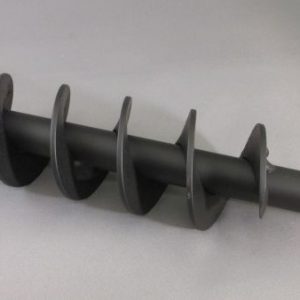

Auger/Shaft Weldment
80P53666-R
-
Auger Bushing Washer
80P50858-R
-
5/8″ Collar with Set Screw
80P20248-R
-

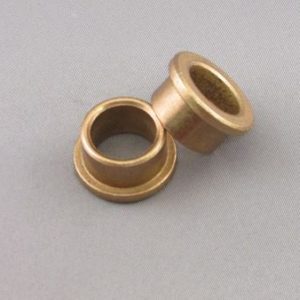

Flanged Bushing–Auger
80P20299-R
-
1/4″ x 1″ Foam Tape (sold by inch)
8709K46-R
-
Quick Disconnect Gasket (Exhaust)
80P52232-R
-
Combustion Fan Gasket (housing to stove)
80P20168-R
-
Combustion Fan Housing Gasket (motor to housing)
80P60487-R
-
Flat 1/2″ Ashpan Door Gasket (includes 80″)
80P20025-R
-
Trim Loc Seal (Sold By The Inch)
X-113HT-R
-

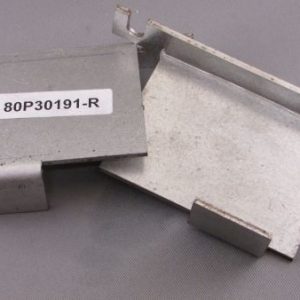

Motor Retainer Bracket
80P30191-R
-

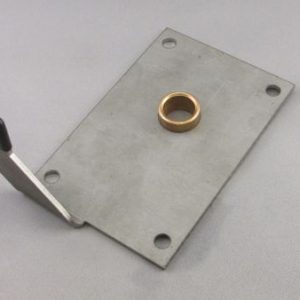

Motor Mount Bracket
80P54074-R
-

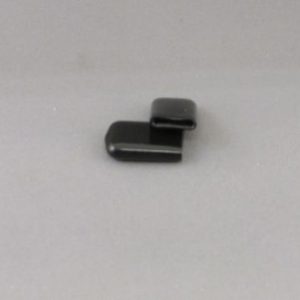

Black End Caps
80P20175-R
-
Multi-Fuel Burn Pot Weldment
80P53890-R
-
Coal Rake Weldment – 2008 to 2018 Auburn Models only
80P53649-R
-
Coal Rake Weldment – All Ashby-MF models & 2019 Auburn and later models only
80P54198-R
-
Slide-Out Bottom for Corn Pot – 2001 to 2014 Auburn Models Only
80P53657-R
-
Bottom Slide -All Element MF, Ashby-MF models and Auburn 2019 and later models
80P54368-R
-
Coal Rake Rod
80P52592-R
-
Bottom Slide Rod
80P52627-R
-
Black Cast Door Frame Only
80P20091-R
-
Gold Cast Door Frame Only
80P20032-R
-
Nickel Cast Door Frame Only
80P20106-R
-
Steel Brick Kit for units built before 2015
80P53982
-
Brick Kit – 2015 EPA and later Prescott Series & Auburn
80P54459
-
Glass, Cast Door
80P20033-R
-

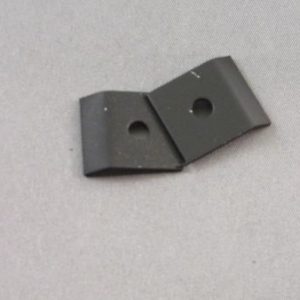

Glass Clips
80P60083-R
-
Door Handle, Painted (Cast Doors and Furnace)(Coil style 80P20036)
80P60036-R
-
Brass Coil for Door Handle
80P20036-R
-
Nickel Coil for Door Handle
80P20036-BN-R
-
Door Hinge Pins – 1/2″ x 2″
80P65021-R
-

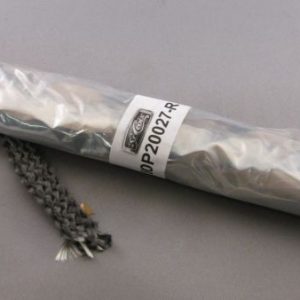

Flat 5/8″ Glass Gasket Kit (includes 47″)
80P20027-R
-

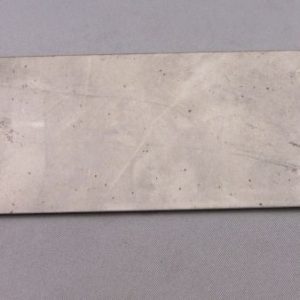

Clean Out Cover Plate (behind ash pan)
80P30280-R
-

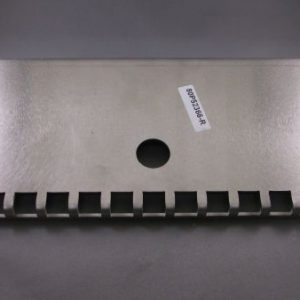

Heat Exchange Baffle
80P52366-R
-

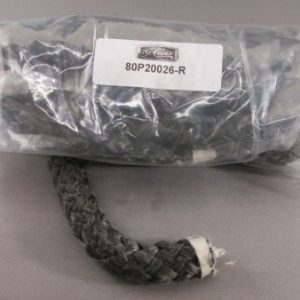

Round 5/8″ Door Gasket Rope Kit (includes 80″)
80P20026-R
-

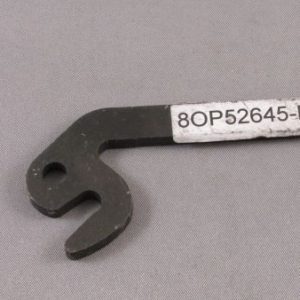

Ash Door Handle
80P52645-R
-
Loctite Anti-Seize
80P31190-R
-

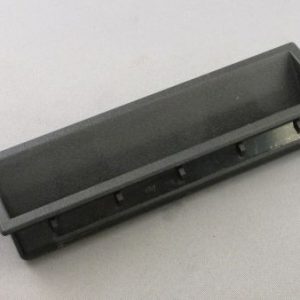

Hopper Handle Pull
80P20183-R
-
.4375″ RO Finish Plugs
9563K84-R
-

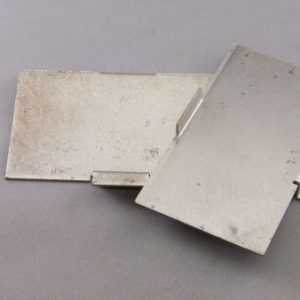

Clean Out Covers
80P52237-R
-
Tube Scraper Rod
80P30033-R
-
Tool Assembly
80P54121-R
-

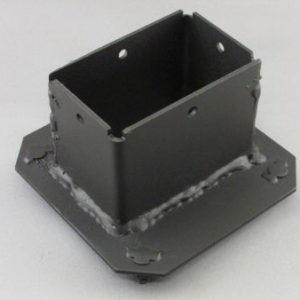

Exhaust Adapter Plate Weldment
80P53667-R
-
Quick Disconnect Pipe Weldment
80P52887-R
-
Hopper & Door Magnets (Discontinued use in 2016 models)
80P30561-R
-
Barb Fitting
80P52634-R
-
1/4″ Silicone Tubing (15″)
51135K282-R
